ACI-120 Series 4

Suitable for High-Volume Waste
Ideal for sub-district municipalities, local administrative organizations, national parks, historical parks, and other locations generating large amounts of waste.

120

ACI-120 Series 4 Incinerator

The Air Control Incinerator is an innovative small-scale solid waste incinerator designed to provide the highest level of efficiency and maximum cost-effectiveness.

Powered by waste.
Zero electricity or fuel.

3-Chamber Technology

Incineration Capacity 120 – 250 kg/hr

Continuous 24-hour operation

Eco-Friendly

Air emission quality fully complies with the standards set by the Ministry of Natural Resources and Environment (2010).

Certified to International Standards

ISO 9001:2015 certified for design, manufacturing, sales, and installation, using premium refractory materials from ISO 9001, 14001, and 45001 certified factories.

Safe & Easy to Use

Simple to operate and maintain with high safety standards. The design is straightforward and features no complex mechanical systems.

Product Specifications

Specification	Detail
Combustion System	Air Control Incineration (ACI)

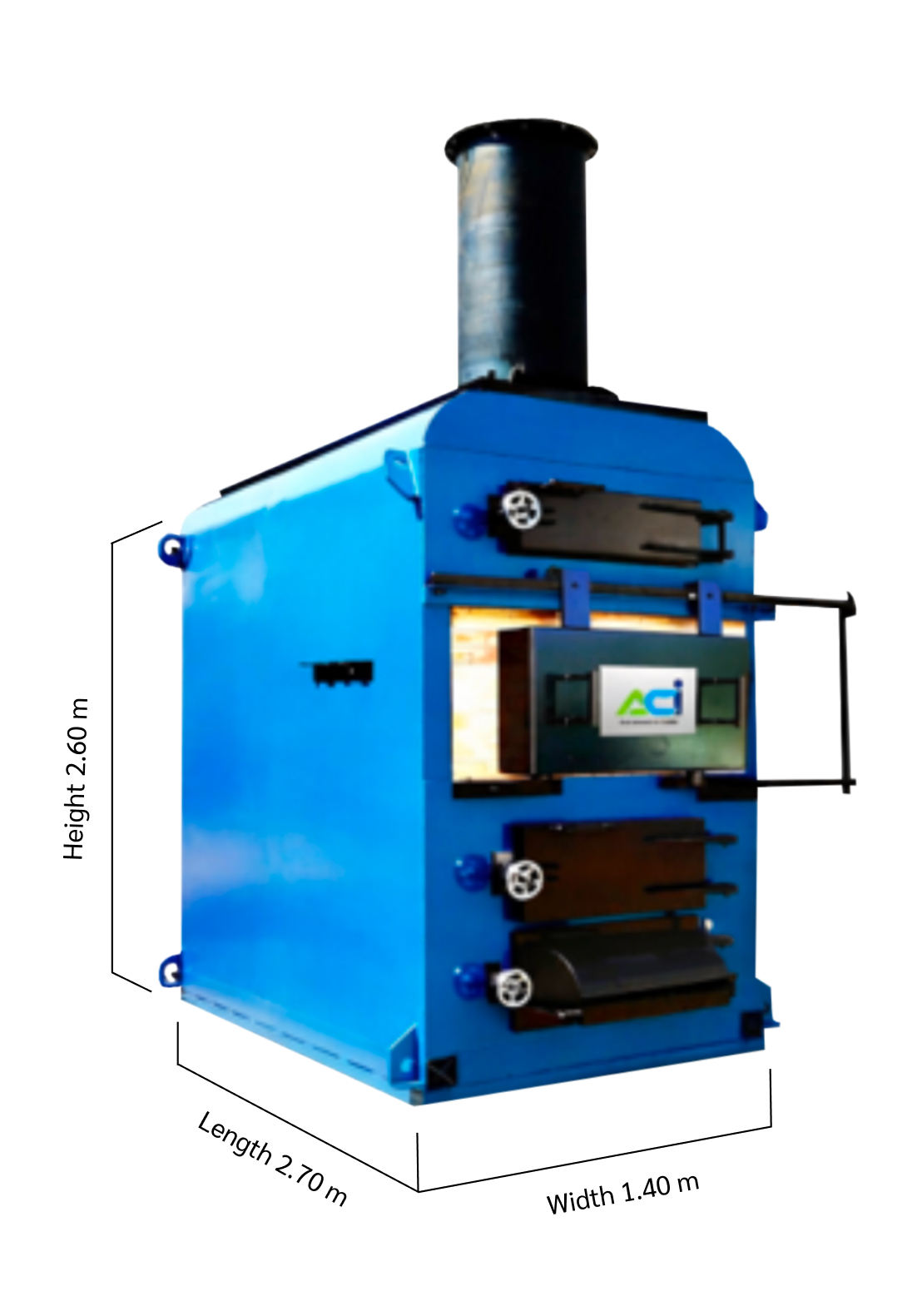

Incinerator Dimensions (Approximate)	Width 1.40 m × Length 2.70 m × Height 2.60 m Chimney height is 10.00 m from the ground.
Weight (Approximate)	10,000 kg
Combustion Chambers	3 chambers, constructed with high-grade refractory bricks
Fuel	Waste (Requires no supplementary oil, gas, electricity, or any external fuel for combustion)
Electrical, Mechanical & Air Compressor Systems	None (The incinerator is designed to operate efficiently without the need for auxiliary systems)
Incineration Capacity	120 – 250 kg/hr (Capable of 24/7 continuous operation)
Optimal Waste Composition	75% Dry Waste : 25% Wet Waste
Operating Temperature	650 – 900 ºC
Lifespan	5+ years
Warranty	1 year from the date of delivery or installation
